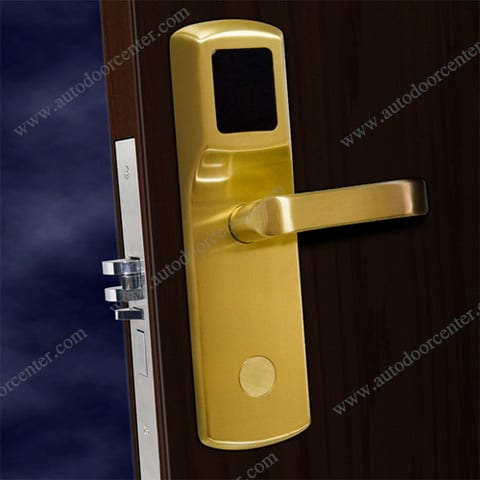

ชื่อสินค้า : Hotel Lock System , RF Card Lock
ชื่อรุ่นสินค้า : HL8000C
Material : Pure Copper
Surface treatment : PVD imitates the golden galvanization
ประโยชน์ที่ได้รับ จากประตูบานเลื่อนอัตโนมัติ Hotel Lock รุ่น : HL8000C
- Finish:Satin Brass
- RFID MIFARE® technology,100,000 times write life for keycard, contactless reading keycard
- ANSI mortise
- Free-engage while locking
- Powered by 4 pcs AA battery
- Openings 20,000 times for one new battery pack
- Audit trail records the latest 800 lock transactions.
- Low Battery Voltage warning(beep and red light)
- Passage mode activate by passage card for meeting case
- Do not disturb(DND) function for hotels:While thumb turn is on from inside, the lock will refuse the keycard outside by show red light
- Panic release function: the deadbolt and latch are automatically retracted by inside handle shaking to easy egress when emergency happens
- Xeeder Hotel Lock System™ required
- 40mm-50mm thickness door
- Each Xeeder hotel lock equipped double clock, control the guests check-in and departure time accurately, Make your management of rooms easily.
คุณสมบัติ
- Model: HL8000C
- Power: LR6 (AA)battery x 4pcs
- Low power alarm voltage:4.8V
- Communication: 13.56MHz RFID（with keycard)/infrared (with LMA or WDR)
- Card support: MIFARE® S50 plus S70
- Working Distance: 45mm Max
- Working Tempreature: 0-60℃
- Working Humidity: 15~85%RH
- Static current: < 30uA
- Working current: < 150mA
- Memory: 800 Transactions include Time/Date/Card ID/Card type/Room ID
- Software: XEEDER Hotel lock system™
- Gross Weight: 3.2KG
- Package: 10pcs/Carton at 74.0X42.0X32.0CM
- Content: Front/Back panel,mortise,cylinder,keyx2,battery-pack,manual/Strike(no battery included, no card)
การใช้งาน
- Guest card: Reception complete program Guest card by give a begin and expiry date for a room(rooms). Guest access room by read this card on lock
- Master card:Hold by housekeeping to access to all rooms of hotels
- Floor card: Hold by clean staff to enter the rooms in one floor.
- Building card: Hold by manager to enter the rooms in one building
- Passage card: Once this card been read on one door, this door could be acceess by without reading keycard
- Emergency card: Enter the all rooms
